Medical devices
Hospital equipment, imported and supplied.
Beyond medicines and consumables, we import and supply medical devices and hospital equipment — complete cardiac catheterisation laboratories (cathlabs), and orthopaedic implants and surgical instruments.
Interventional cardiology
Cardiac, neuro and vascular interventions under one roof.
A cathlab is the imaging suite where angiography, angioplasty and stenting are done. We supply the range made by Allengers Medical Systems Ltd. of India — ceiling-suspended, fixed and mobile systems for hospitals planning or upgrading a cardiac unit.
- Serving healthcare since
- 1987
- Cathlabs installed worldwide
- 700+
- Countries supplied
- 110+
- CE marked · ISO 9001 · AERB approved
- ISO 13485
Figures and certifications as published by Allengers.
The range
Six cathlab models, three ways to install.
Choose by room and caseload: ceiling-suspended for the most complex work, floor-mounted for a dedicated cardiac room, or mobile.

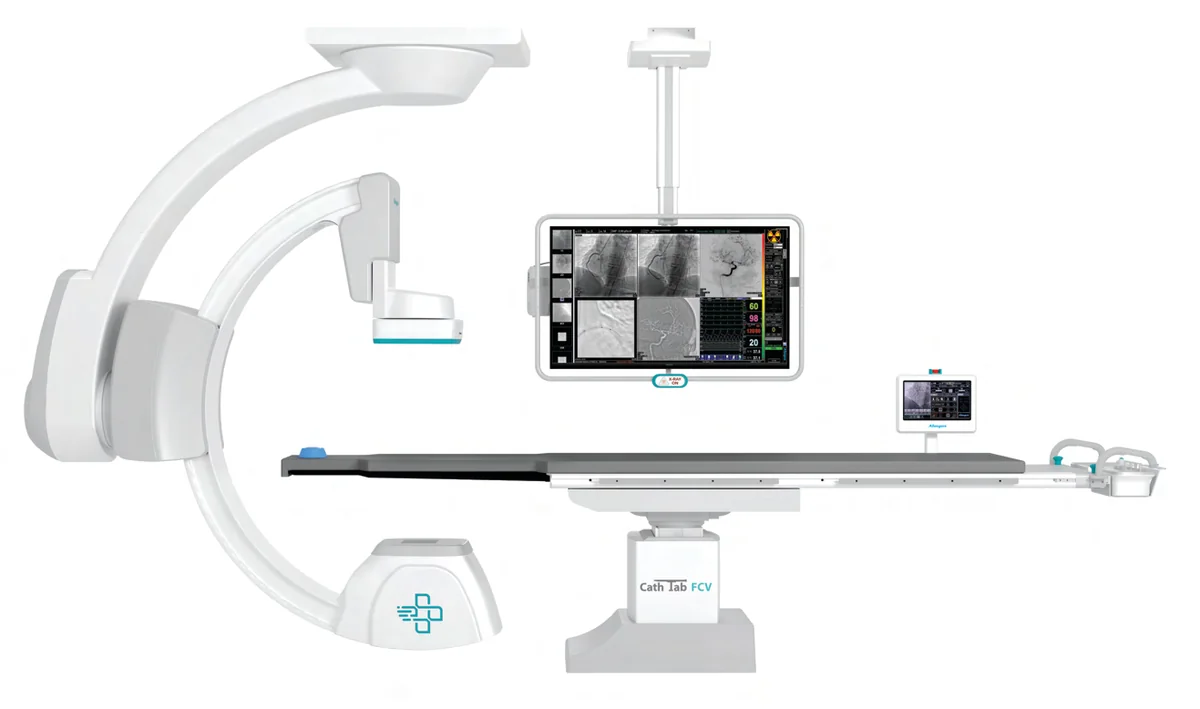

Ceiling-suspended cathlab
Proxima CS
- Proxima CS · 100 kW

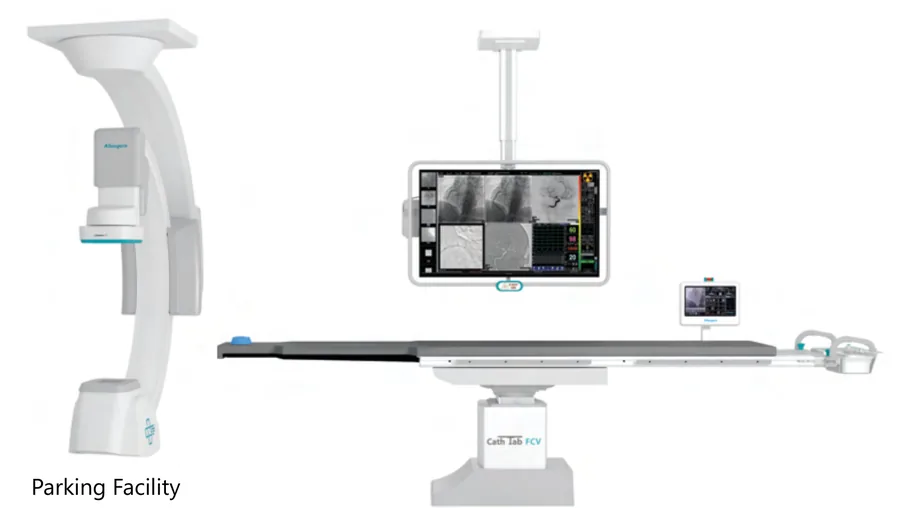

The gantry hangs from a ceiling rail and can be parked out of the way between cases. Built for complex cardiac, neuro and vascular interventions, with fast, programmable gantry movement of up to 25° per second.
- 100 kW generator with liquid-metal-bearing X-ray tube
- Flat-panel detector, 20×20 cm or 30×30 cm
- Rotational angiography and peripheral (head-to-toe) scan

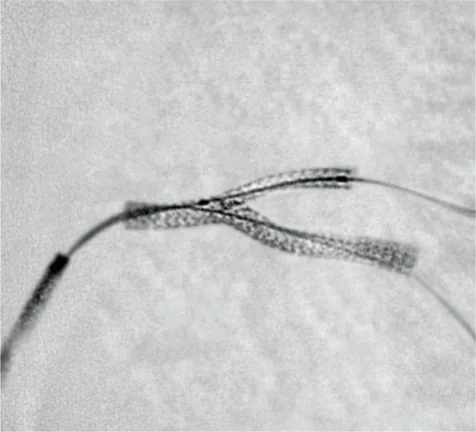

- Stent view with stent fade in / fade out

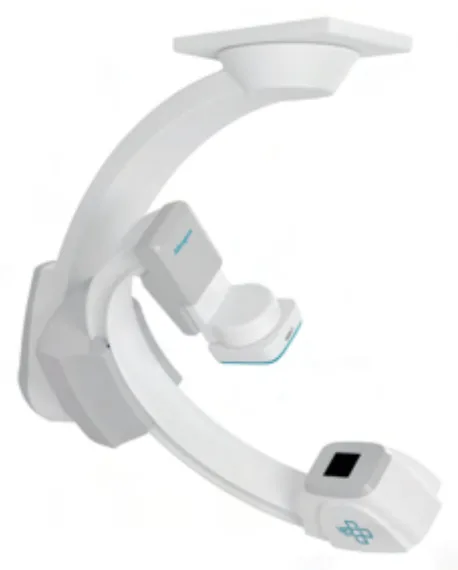

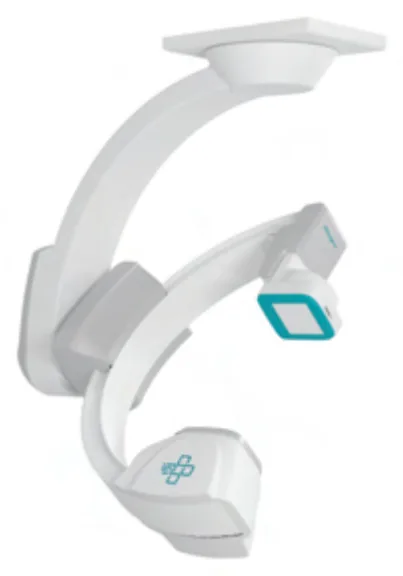

- LAO / RAO angles from −120° to +120°
- FFR, IVUS and OCT integration (optional)

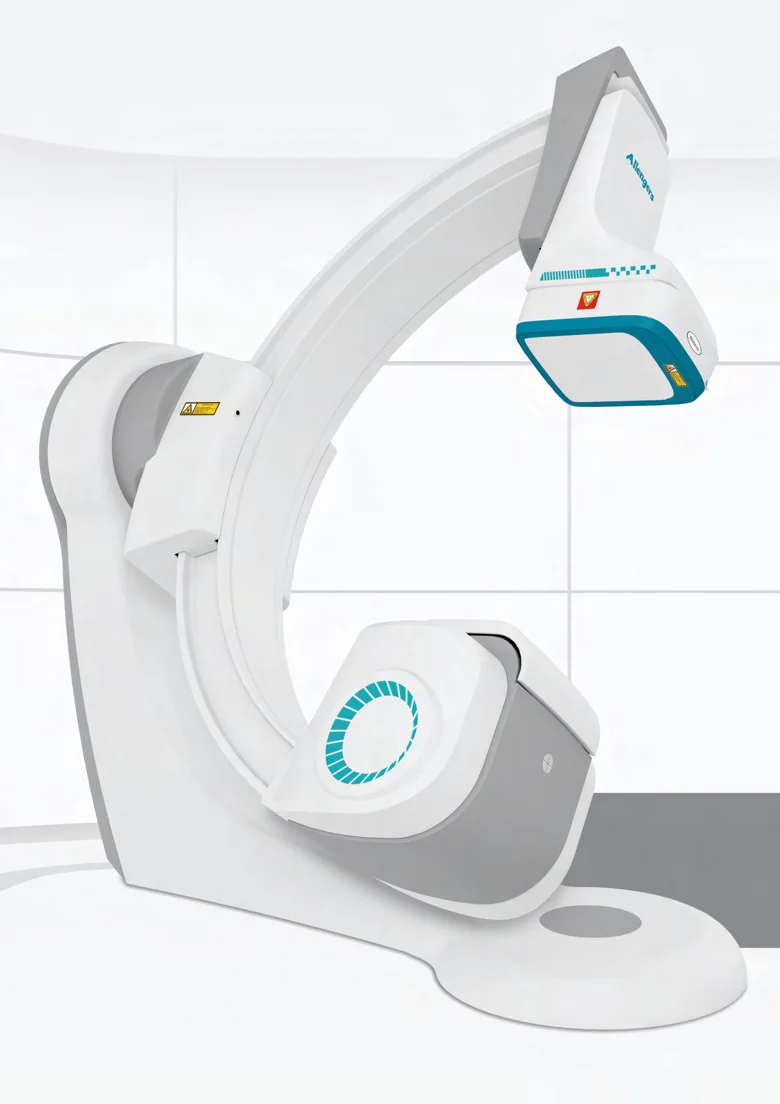

Fixed (floor-mounted) cathlabs
Altima series
- Altima Adv · 100 kW
- Altima F100 · 100 kW
- Altima F80 · 80 kW
Floor-mounted C-arm systems in three configurations — one solution for cardiac, vascular and neuro imaging. The Altima Adv adds rotational angiography and a longer table option for head-to-toe coverage.
- Dual-inverter generator, 80 or 100 kW
- Flat-panel detector with 1K or 1.5K resolution
- 55″ high-luminance monitor with split-screen layouts
- Online digital subtraction angiography (DSA)

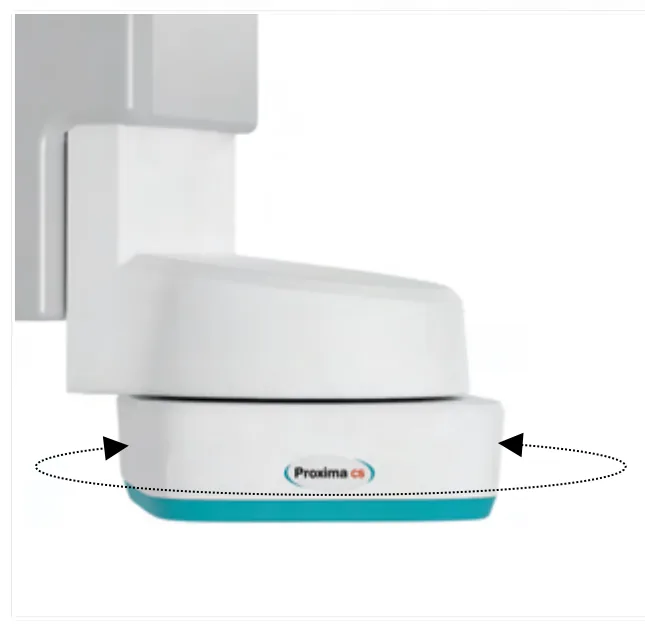

- Motorised detector rotation and height adjustment
- QCA & QLVA quantitative analysis

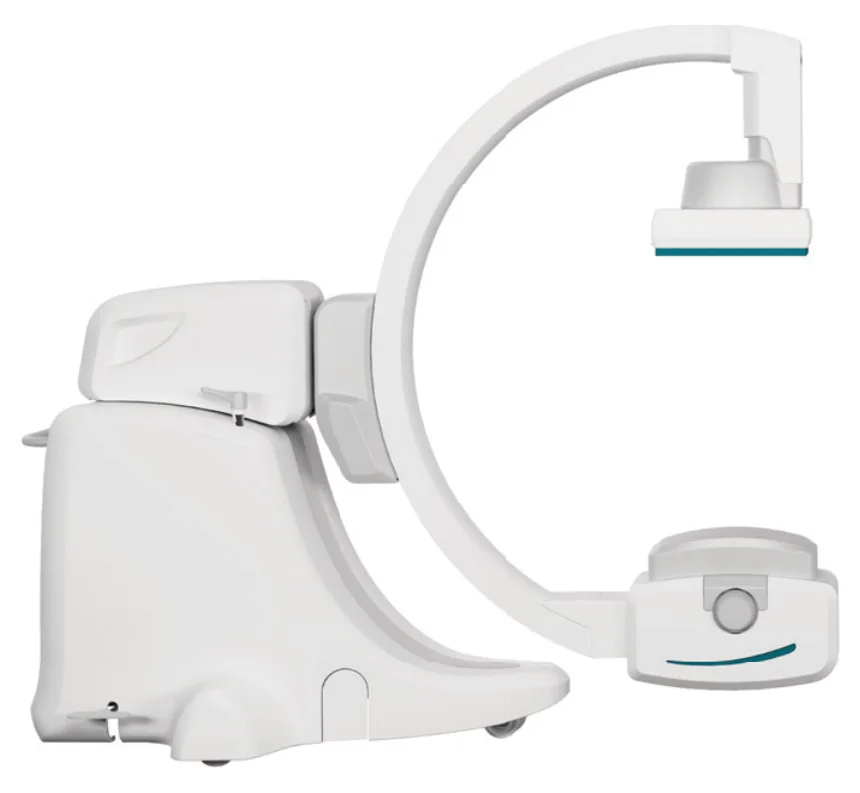

Mobile cathlab
Photon F65 / F80
- Photon F65 · 65 kW
- Photon F80 · 80 kW
A cathlab C-arm on a mobile base, running the same Synergy imaging software as the fixed systems.
- Motorised detector rotation and height adjustment
- Stent view, with live stent view as an option
- FFR, IVUS and OCT integration (optional)
- Remote monitoring system (optional)
- Available with a fixed table

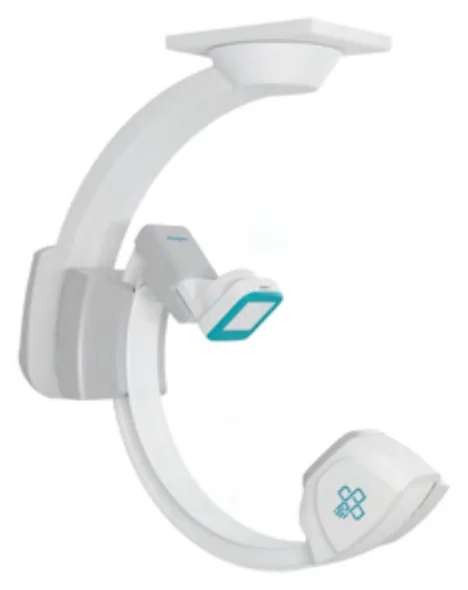

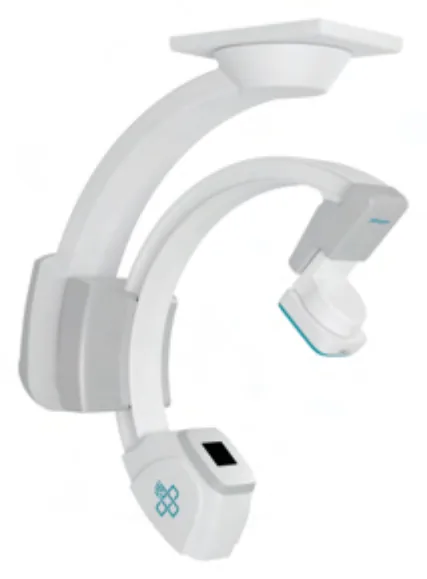

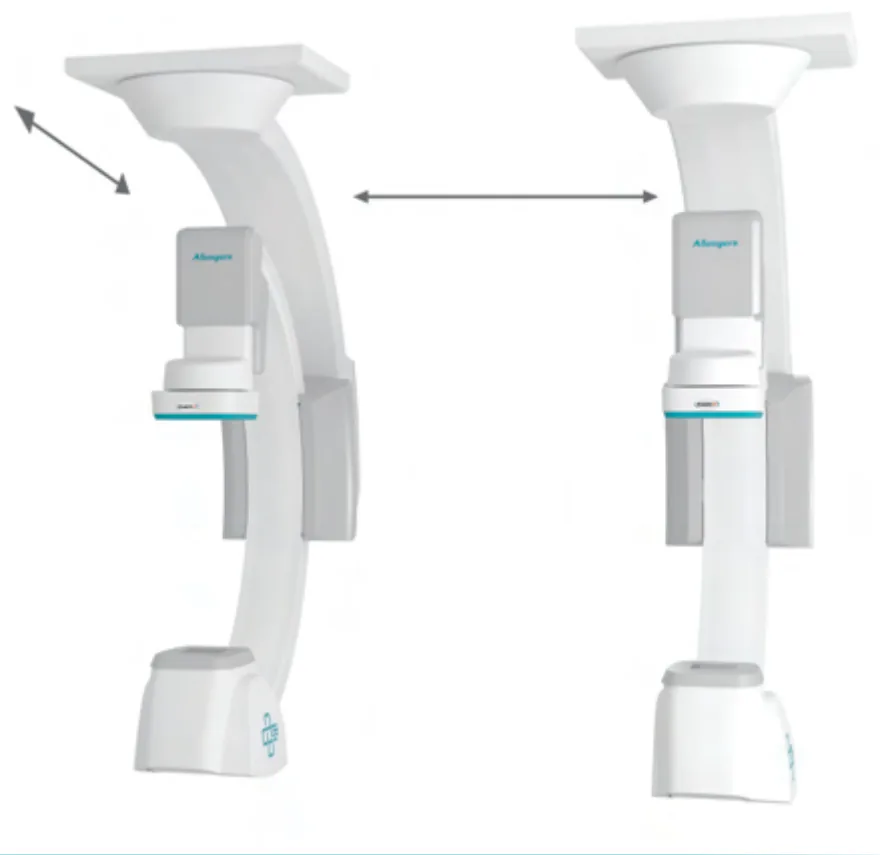

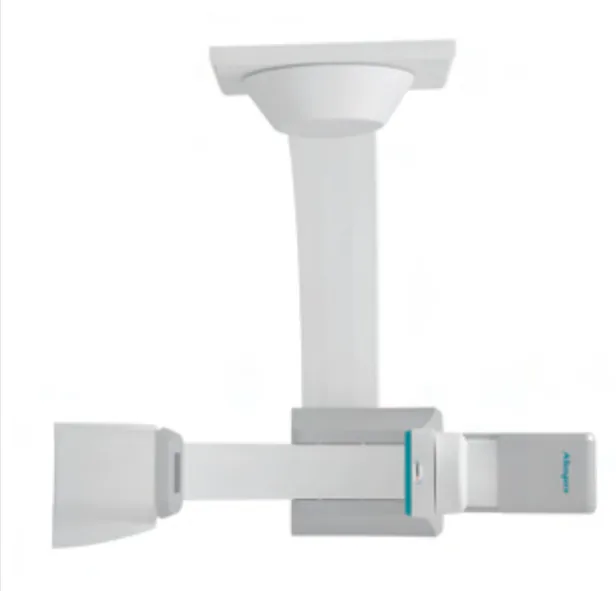

Movement & positioning
Every projection, without moving the patient.

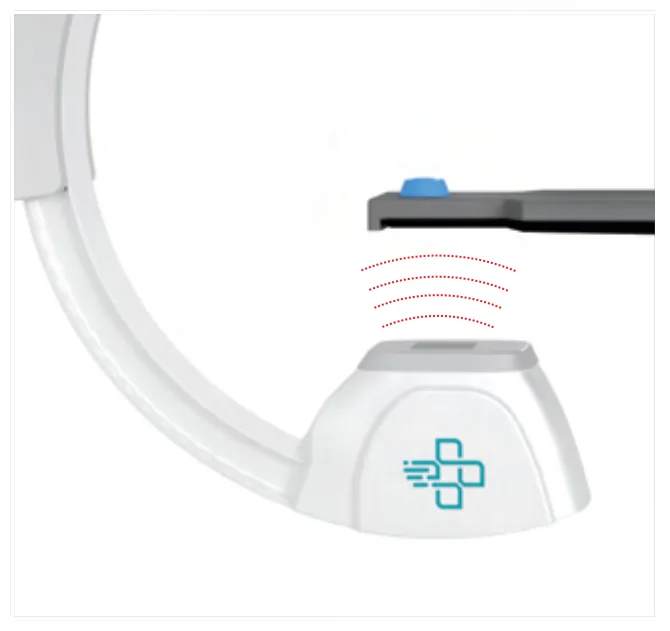

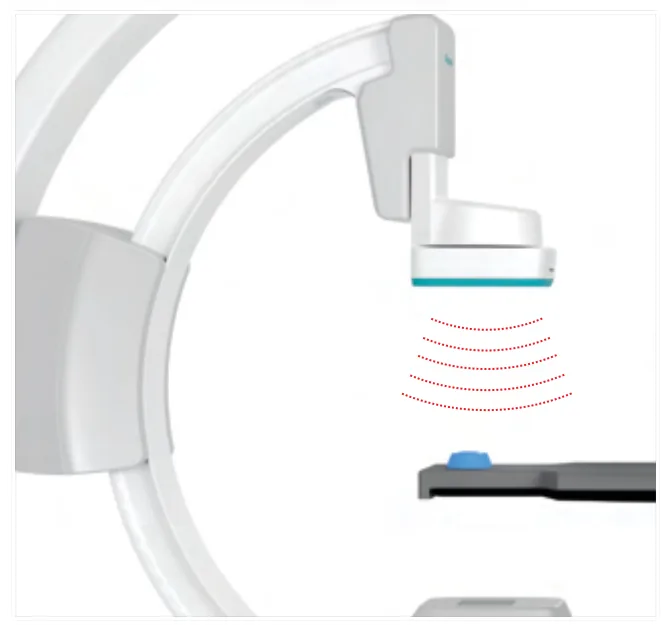

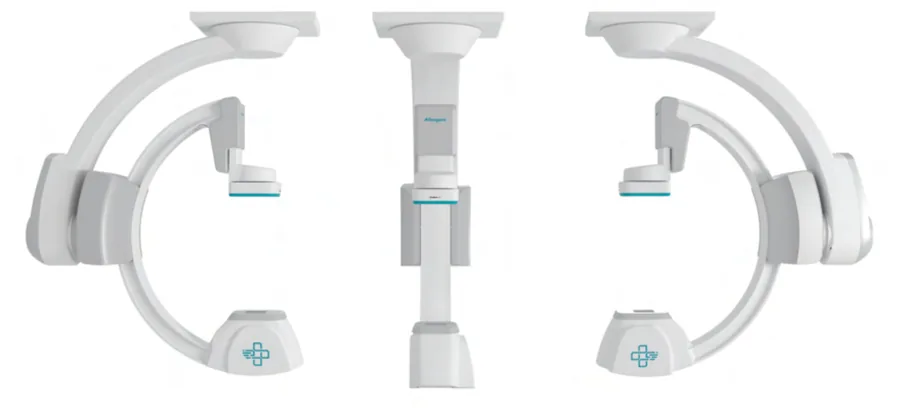

True isocentric C-arm geometry with programmable positions and anti-collision sensors — fast, deep and safe angulation in all projections, at up to 25° per second.
Advanced acquisition
More anatomy, less contrast and dose.

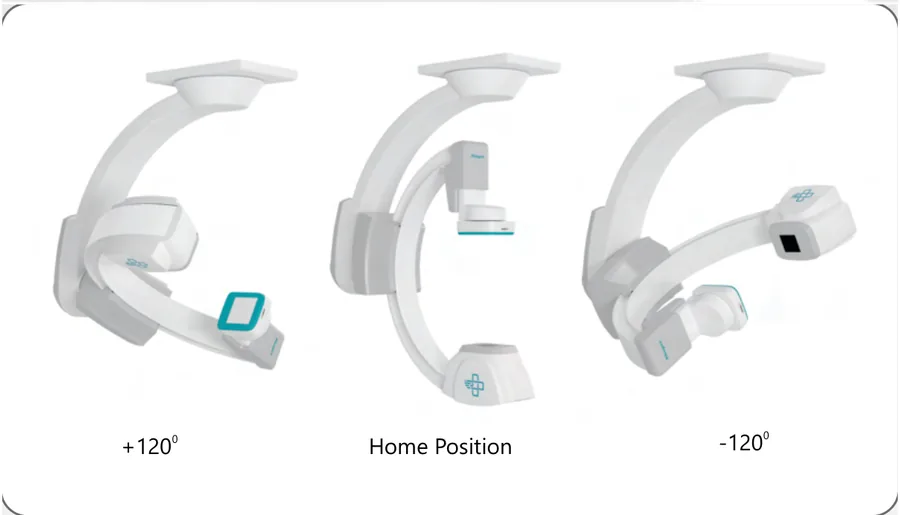

Rotational angiography
Images are acquired while the gantry rotates from +120° to −120°, giving a multi-dimensional view. The data can be reconstructed into a 3D volume of the vessels to plan treatment — and it reduces both contrast agent and radiation dose.
Mono scan: right and left coronary angiography (RCA and LCA) with a single contrast injection.

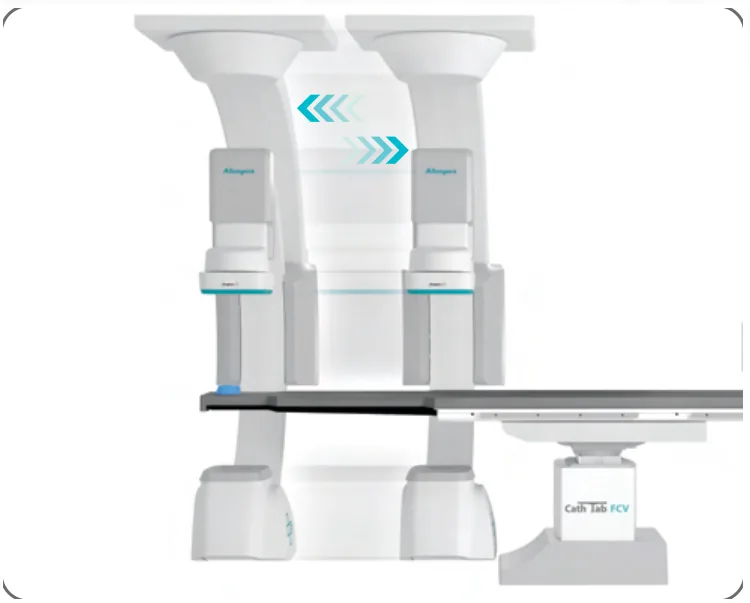

Peripheral scan
For long-limb angiography: head-to-toe vascular anatomy in a single scan sequence, as the gantry moves along the longer cathlab table.
Inside the system
Displays, table and controls.
Highlights from across the range — exact features vary by model, so check each brochure.

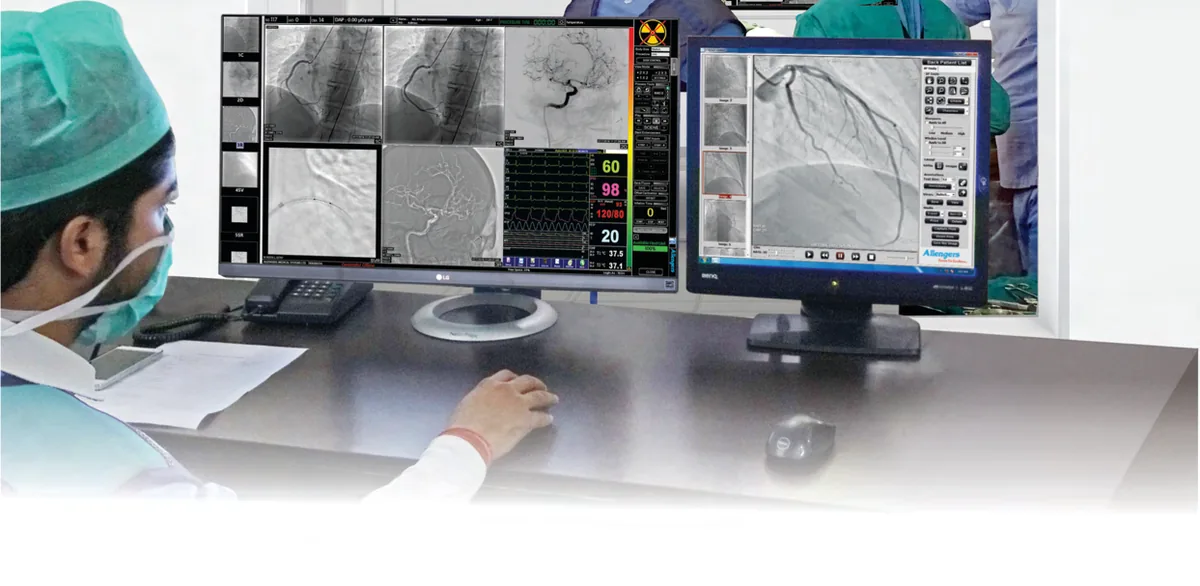

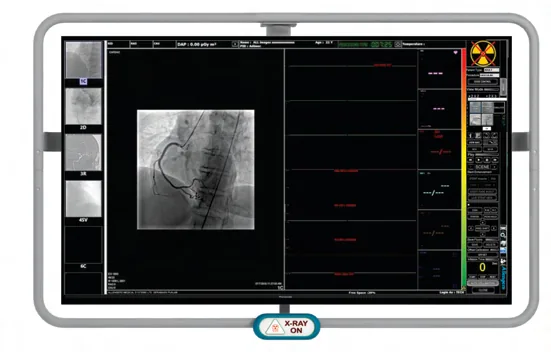

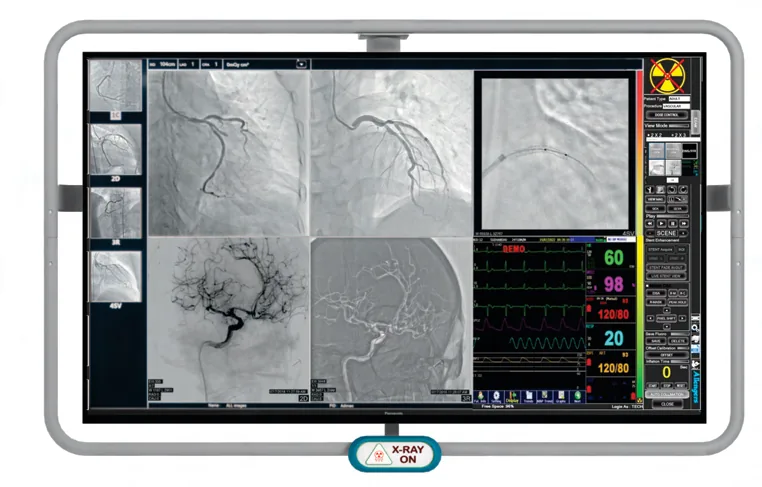

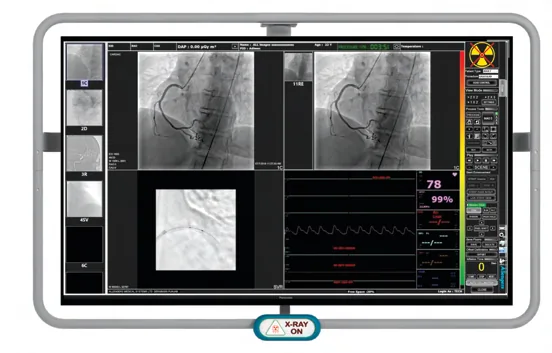

55″ high-resolution display

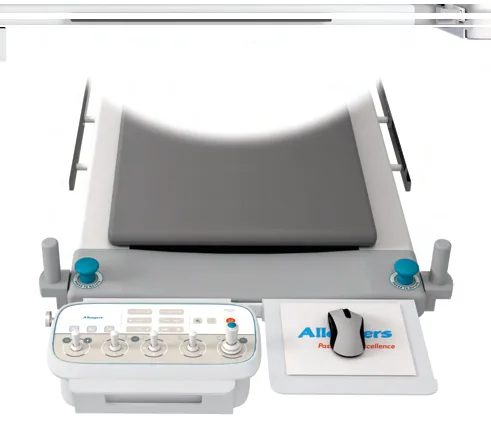

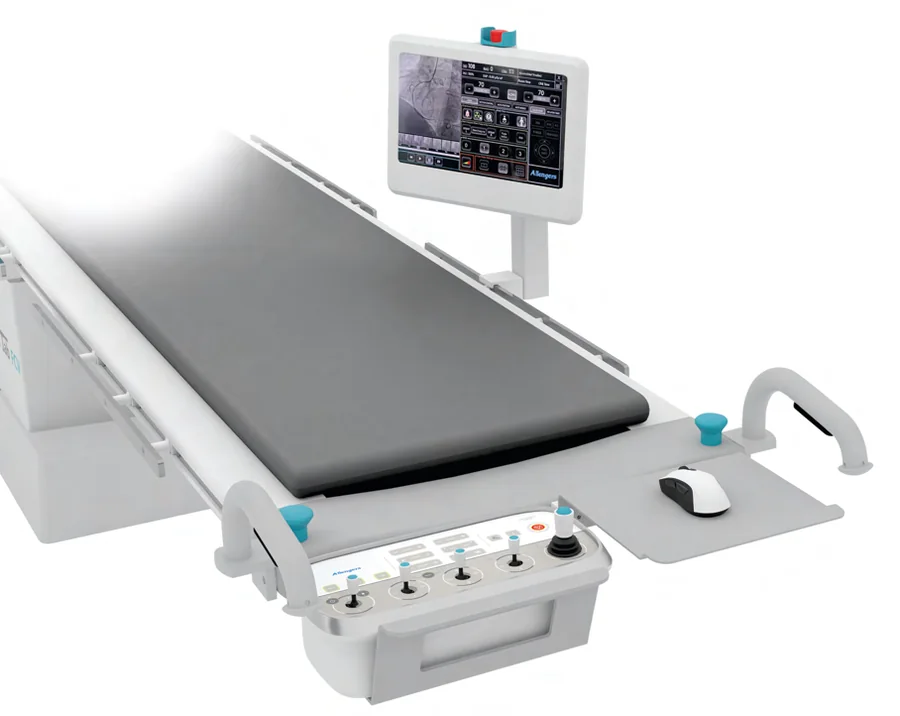

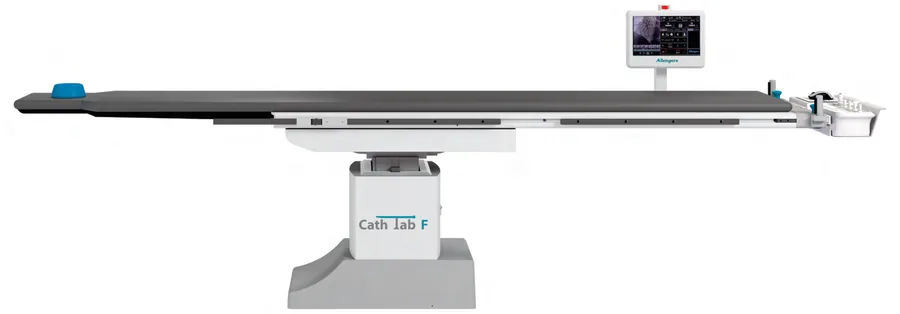

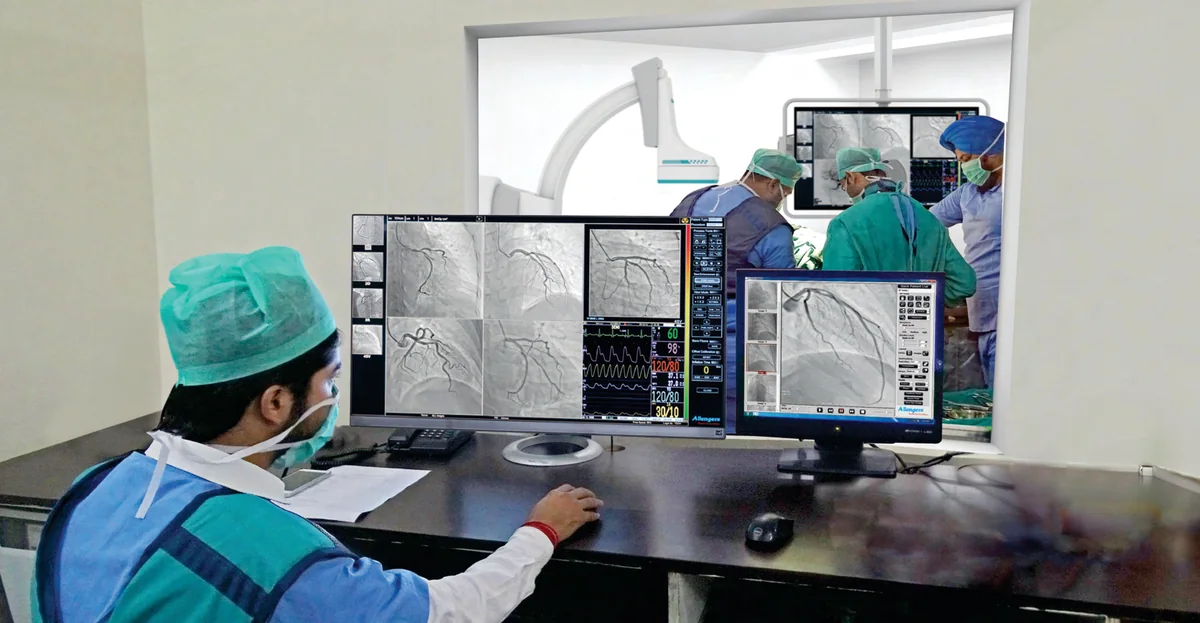

Table, controls and console
Synergy software
Acquisition up to 30 fps; DICOM 3.0 workflow
Analysis
QCA / QLVA, length, angle, stenosis and area
Live tools
Online DSA, road map, pixel shift, re-masking
Remote support
Optional online router for remote diagnosis

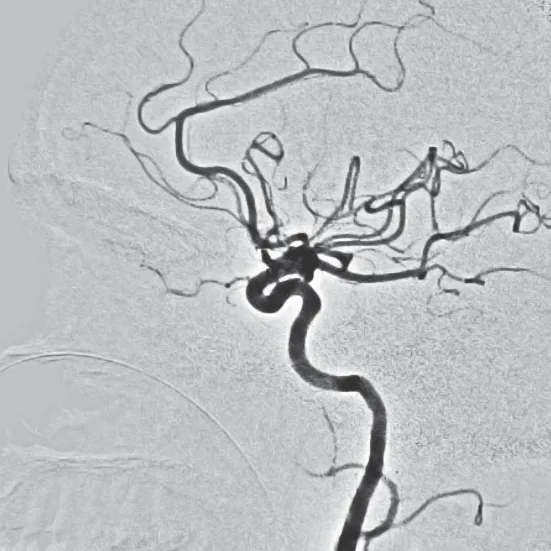

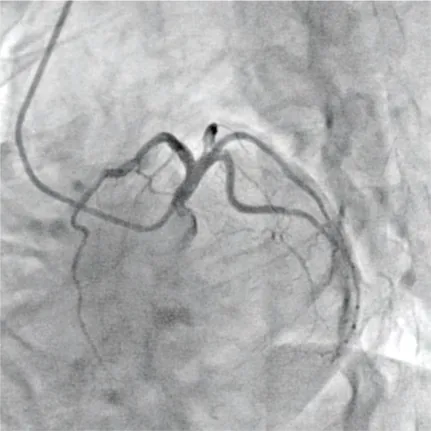

Clinical images
High image quality at low dose.
Coronary, neuro, peripheral and stent images acquired on Allengers cathlabs, as published in their brochures. Click any image to enlarge it.

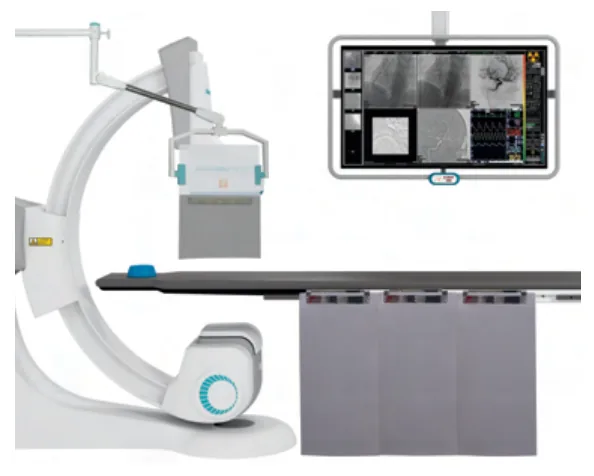

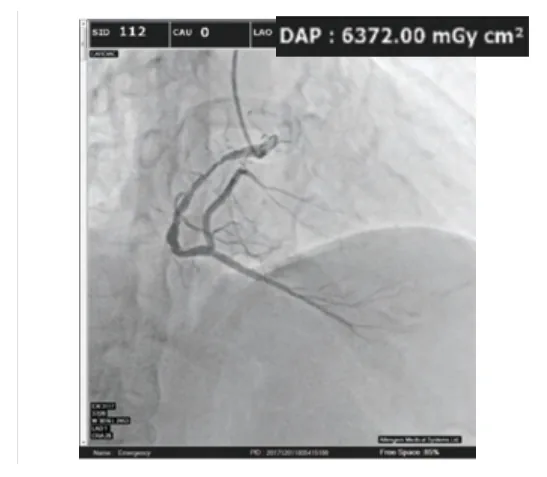

Radiation safety
Best image at the lowest dose.

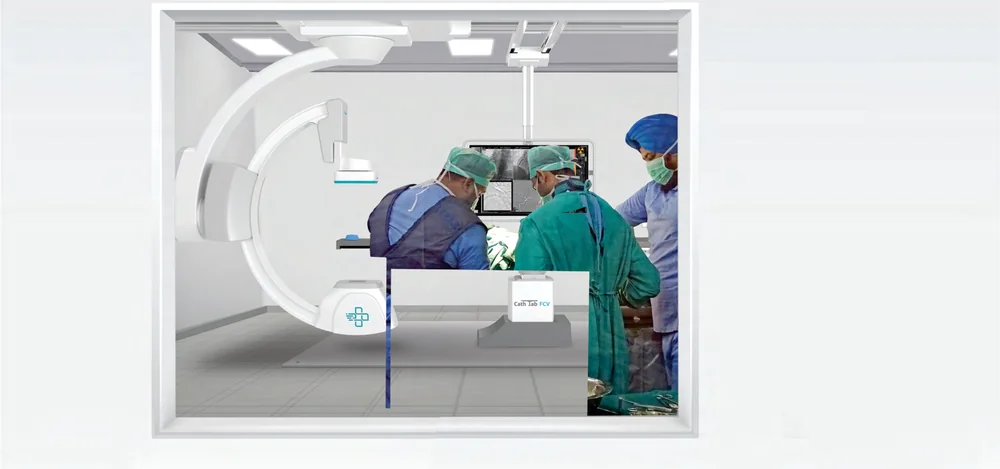

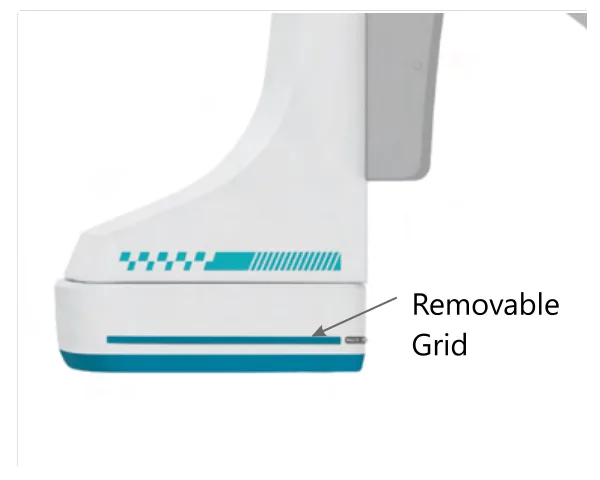

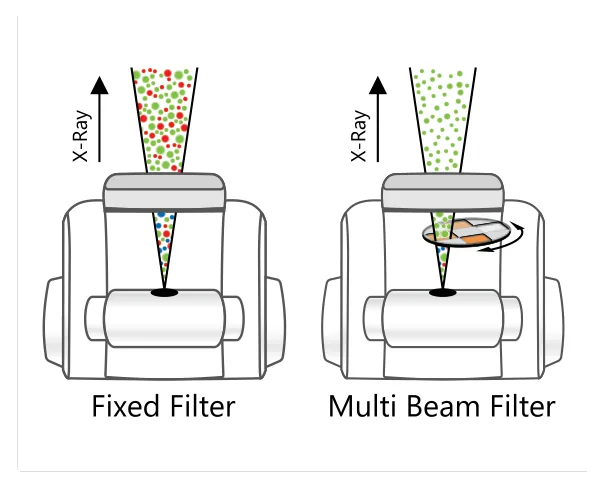

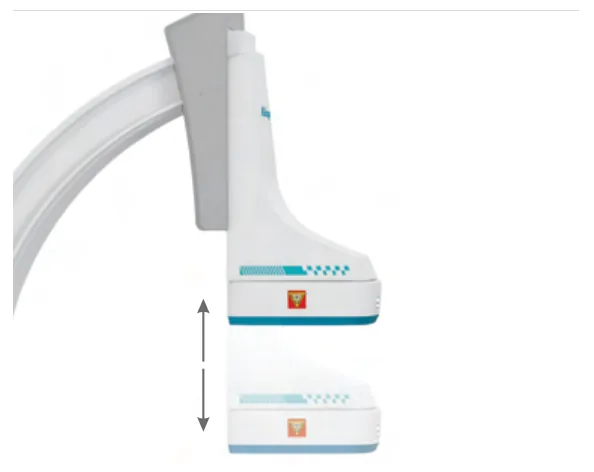

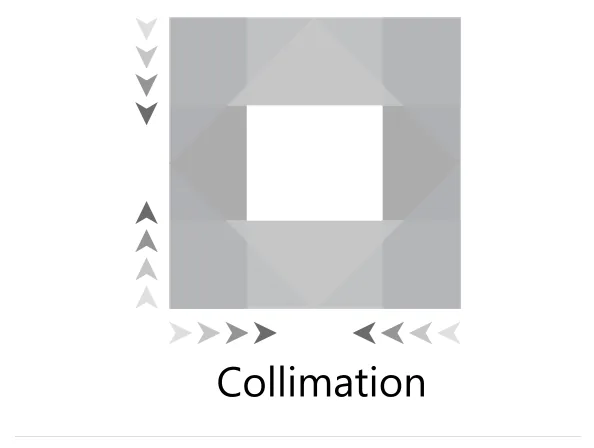

Allengers' ASSURE protocols control the primary beam and scattered radiation, to protect patients and the team in the procedure room.
Technical specification
Plan your installation.
Generator output and site power for each model, and Allengers' standard room plans. Final requirements are confirmed for each project.
| Series | Type | Output | Site power |
|---|---|---|---|
| Proxima CSAllengers Pride HP | Ceiling-suspended | 100 kW | 125 kW · 400 V AC 3-phase · 120 kVA UPS |
| Altima AdvAllengers Pride HP | Fixed | 100 kW | 125 kW · 400 V AC 3-phase · 120 kVA UPS |
| Altima F100Allengers Pride HP | Fixed | 100 kW | 125 kW · 400 V AC 3-phase · 120 kVA UPS |
| Altima F80Allengers Pride HP | Fixed | 80 kW | 100 kW · 400 V AC 3-phase · 100 kVA UPS |
| Photon F80Allengers Life HP | Mobile | 80 kW | 100 kW · 400 V AC 3-phase · 100 kVA UPS |
| Photon F65Allengers Life FP | Mobile | 65 kW | 80 kW · 400 V AC 3-phase · 80 kVA UPS |
Standard room plan
Fixed cathlab (Altima)
- Procedure room
- 20′ × 20′ × 10′6″
- Console room
- 11′8″ × 10′ × 10′6″
- Equipment room
- 8′ × 8′ × 10′6″
- UPS room
- 10′ × 8′ × 10′6″

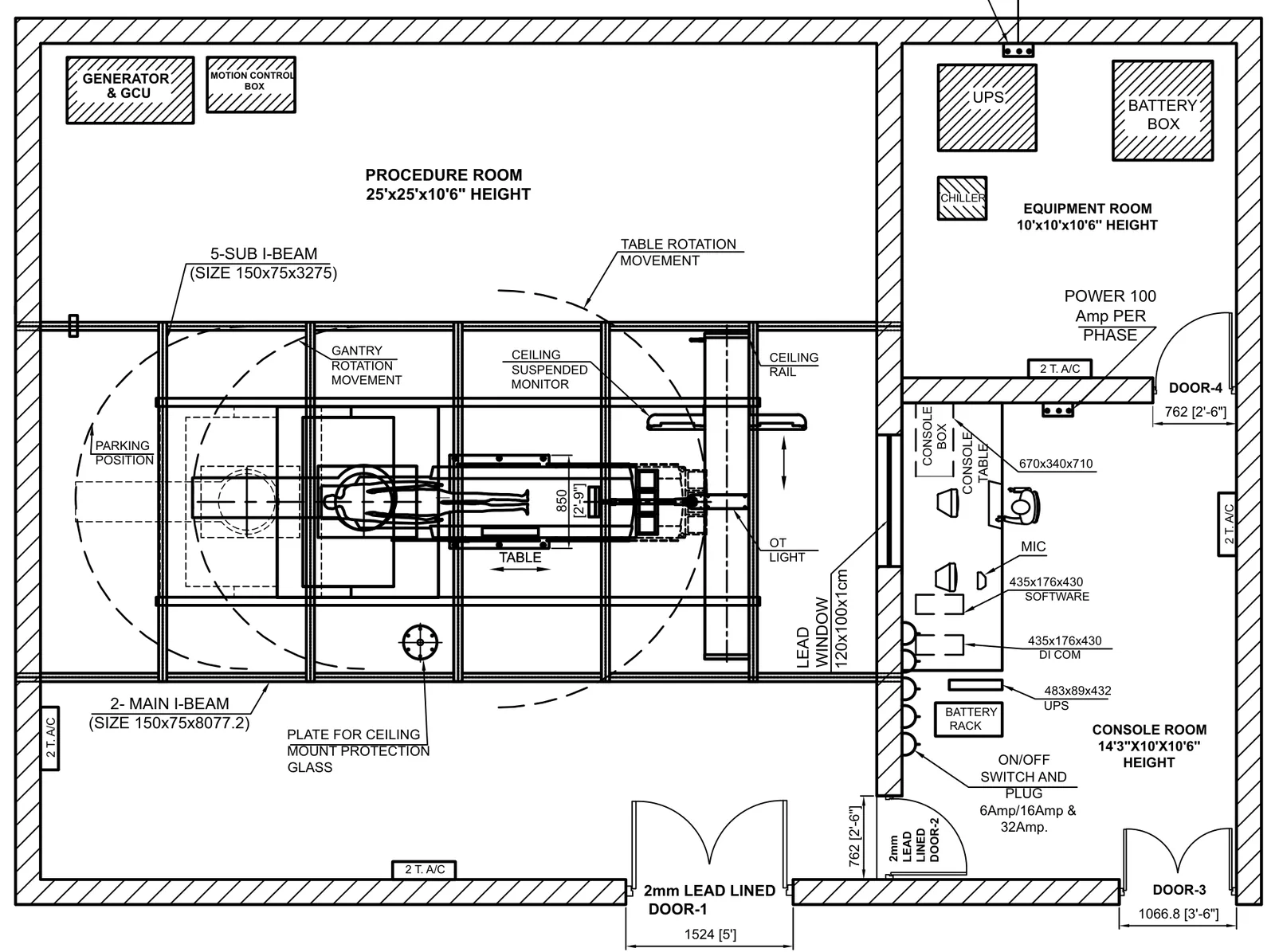

Standard room plan
Ceiling-suspended cathlab (Proxima CS)
- Procedure room
- 25′ × 25′ × 10′6″
- Console room
- 14′3″ × 10′ × 10′6″
- Equipment room
- 10′ × 10′ × 10′6″
Rooms need 2 mm lead-lined doors, an isolated earth pit and a stabilised 3-phase supply — see the brochures for the full plans.

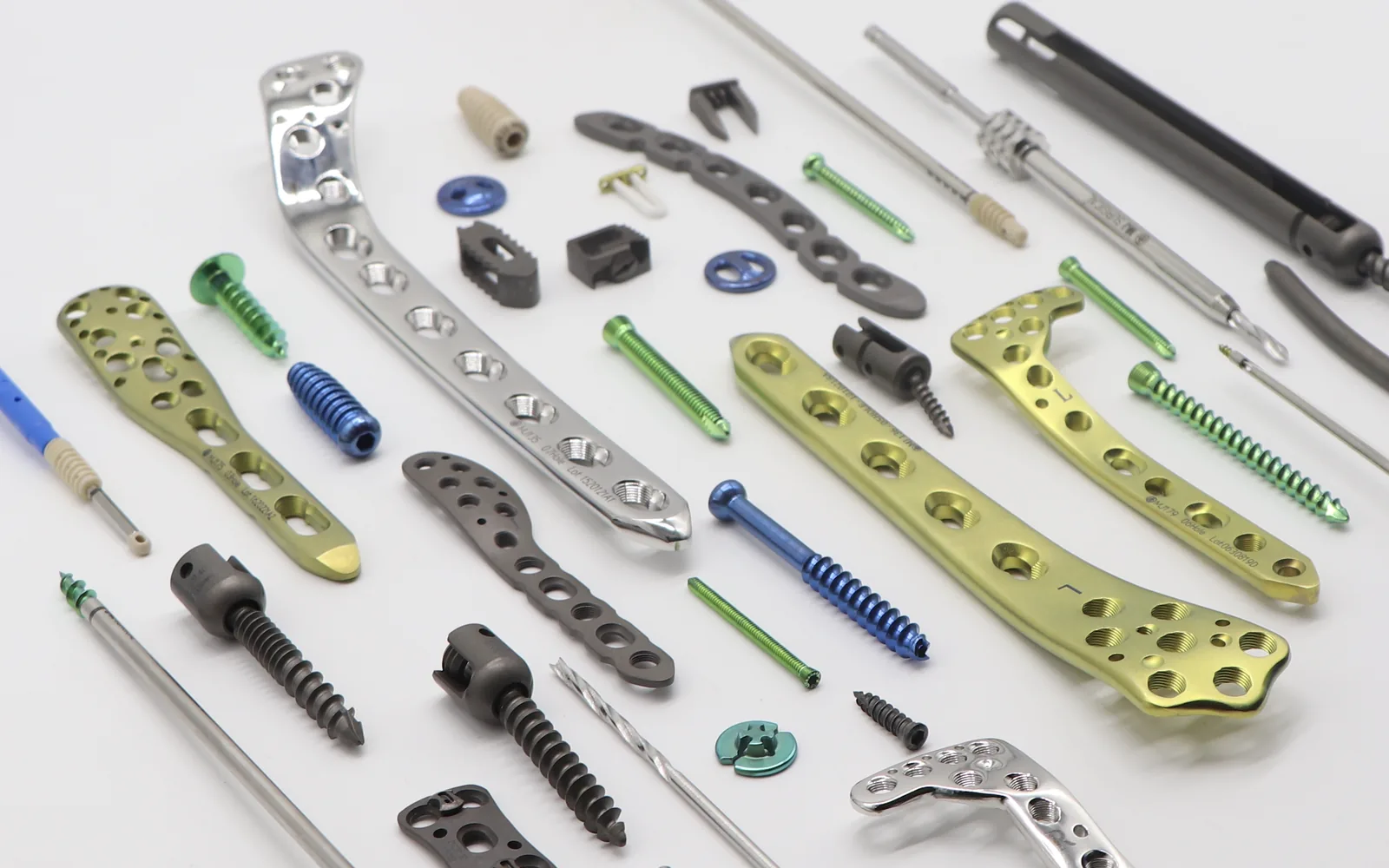

Orthopaedic implants & surgical instruments
Trauma and spine implants, with the instruments to match.
We are brand agent for Abone Surgicals, a Bangalore manufacturer of orthopaedic implants and instruments, certified to ISO 13485:2016. Nails, plates, screws and spine systems in titanium alloy and 316L stainless steel, with the instrument sets to place them.
Intramedullary nails
High-strength titanium and stainless-steel nails for femoral, tibial and humeral fracture fixation.
Key features
- Various diameters and lengths
- Cannulated and solid designs
- Proximal and distal locking options
- Anatomical design for optimal fit
Clinical use
- Femoral fractures
- Tibial fractures
- Humeral fractures
- Long-bone stabilisation
Materials
- Titanium alloy
- Stainless steel 316L
Bone & locking plates
Anatomically contoured plates, including locking compression and reconstruction plates.
Key features
- Locking and non-locking hole combinations
- Anatomically pre-contoured
- Low profile for less soft-tissue irritation
- Sizes for different bones
Clinical use
- Metaphyseal fractures
- Diaphyseal fractures
- Periarticular fractures
- Reconstruction
Materials
- Titanium alloy
- Stainless steel 316L
Orthopaedic screws
Cortical, cancellous, locking and cannulated screws for every fixation technique.
Key features
- Self-tapping and self-drilling options
- Thread designs for different bone types
- Cannulated versions for guided insertion
- Multiple diameters and lengths
Clinical use
- Fracture fixation
- Bone-plate fixation
- Compression across fractures
- Lag-screw techniques
Materials
- Titanium alloy
- Stainless steel 316L
Spine systems
Spinal fixation with pedicle screws, rods and interbody fusion devices.
Key features
- Polyaxial and monoaxial pedicle screws
- Multiple rod diameters and materials
- Minimally-invasive compatible
- Full connector and accessory range
Clinical use
- Degenerative disc disease
- Spinal deformities
- Trauma stabilisation
- Tumour-resection support
Materials
- Titanium alloy
- Cobalt chrome
- PEEK
Surgical instruments
Precision instruments and complete sets for orthopaedic procedures.
Key features
- Ergonomic designs
- Autoclavable and sterilisable
- Durable for repeated use
- Complete procedure-specific sets
Clinical use
- Drilling and tapping
- Plate bending and contouring
- Screw insertion and removal
- Bone reduction and holding
Materials
- Medical-grade stainless steel
- Titanium components

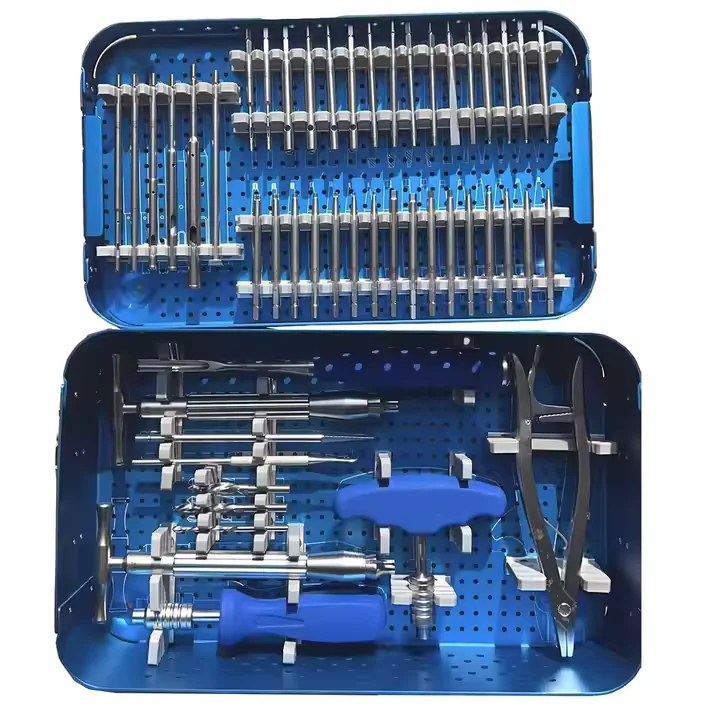

Complete instrument sets
Abone makes complete, autoclavable instrument sets to go with its implants. Tell us the procedure, implant sizes and quantities — we'll quote availability, price and lead time. Product images © ABONE SURGICALS.
Planning a cathlab or theatre order?
Send us your hospital's room size, caseload and power supply, or your implant list. We'll come back with the right configuration, a quotation and delivery time — and you can ask us about installation, training and after-sales service.
